Industrial Bakery in the Caribbean

Industry

Food

Services provided

Scan to BIM, BIM/VDC as a Service

Deliverables

Point Cloud + Revit Model + 2D Plans

Facing outdated hand-drawn plant documentation and ambitious plans to expand production, an industrial bakery partnered with ENSOL Group to reimagine its layout. ENSOL, needing accurate as-builts to design remotely from the U.S., brought in OAR to scan and model the facility. OAR delivered a hybrid solution of 2D and 3D documentation—now hosted and shared via CINTOO—eliminating months of site visits and empowering global coordination.

Industry: Industrial Baking

Core Services: Reality Capture, Scan to BIM, as built 2D/3D Modeling

Key Outcome: Accurate, sharable asset documentation enabling remote design & future expansions

The Challenge

A legacy food processing plant in Jamaica that grew organically over three generations. This resulted in:

Fragmented infrastructure

No reliable documentation

Hand-drawn site drawings that didn’t reflect the current production setup

Urgent need to reorganize for increased production over the next 18 months

The ENSOL Group, contracted OAR to create the new layout design, faced their own challenge: designing remotely without trustworthy as-builts would mean costly site visits and unreliable engineering data.

About the Project

Our Solution

The ENSOL Group turned to OAR to capture the entire facility with high precision and speed. OAR deployed a tailored scanning and modeling strategy:

Scanning: Entire facility scanned in 3.5 days using RTC360

Deliverables:

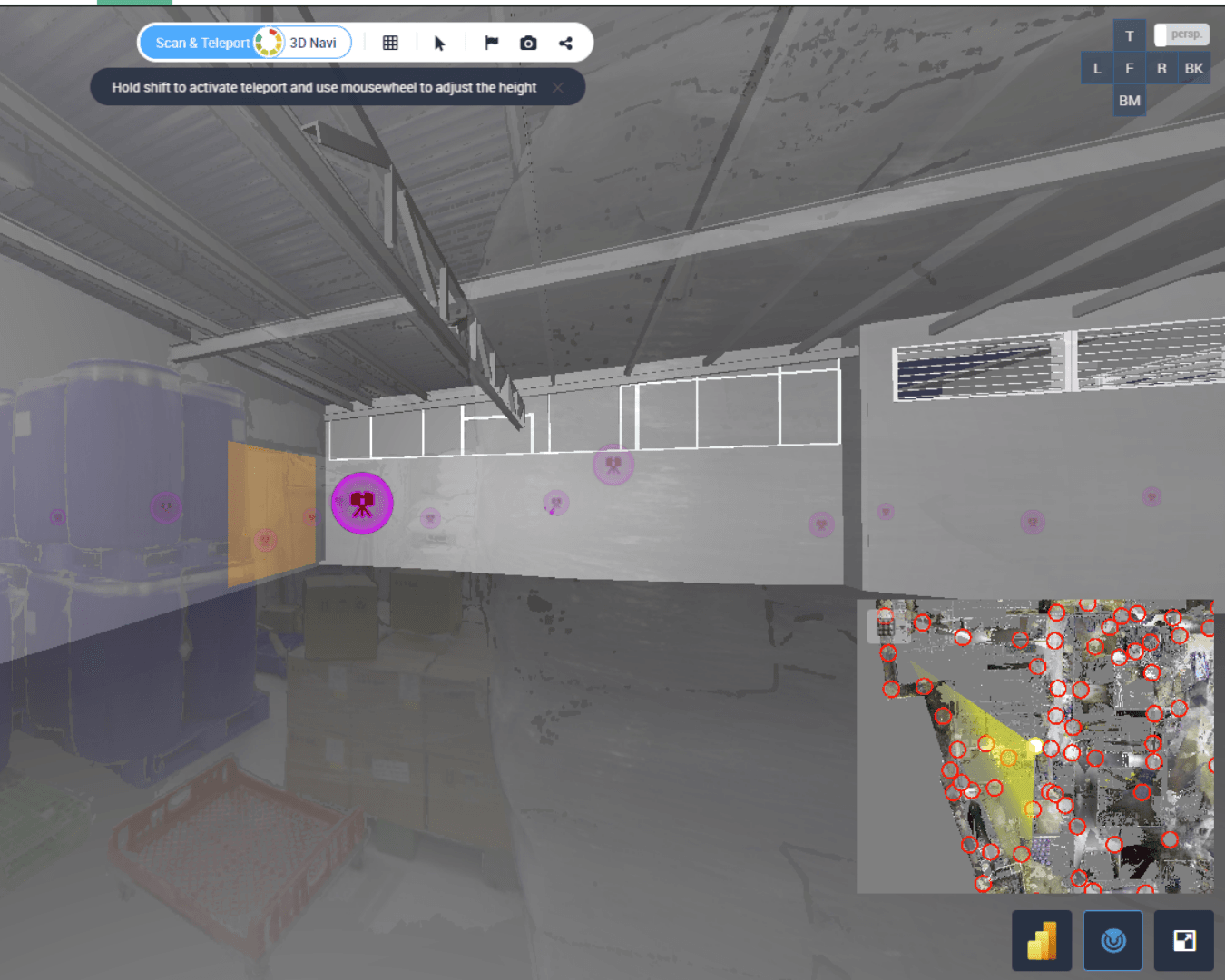

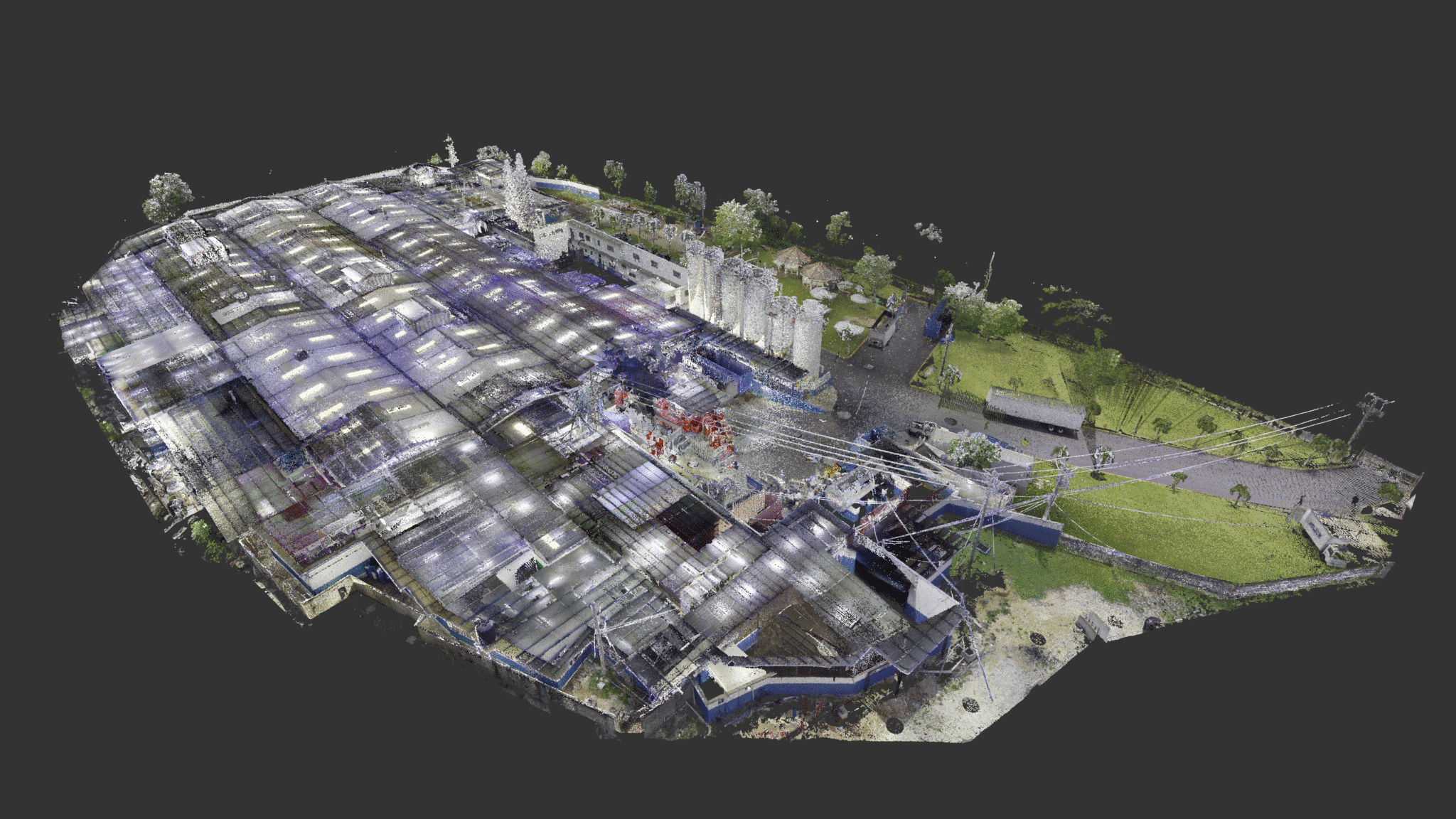

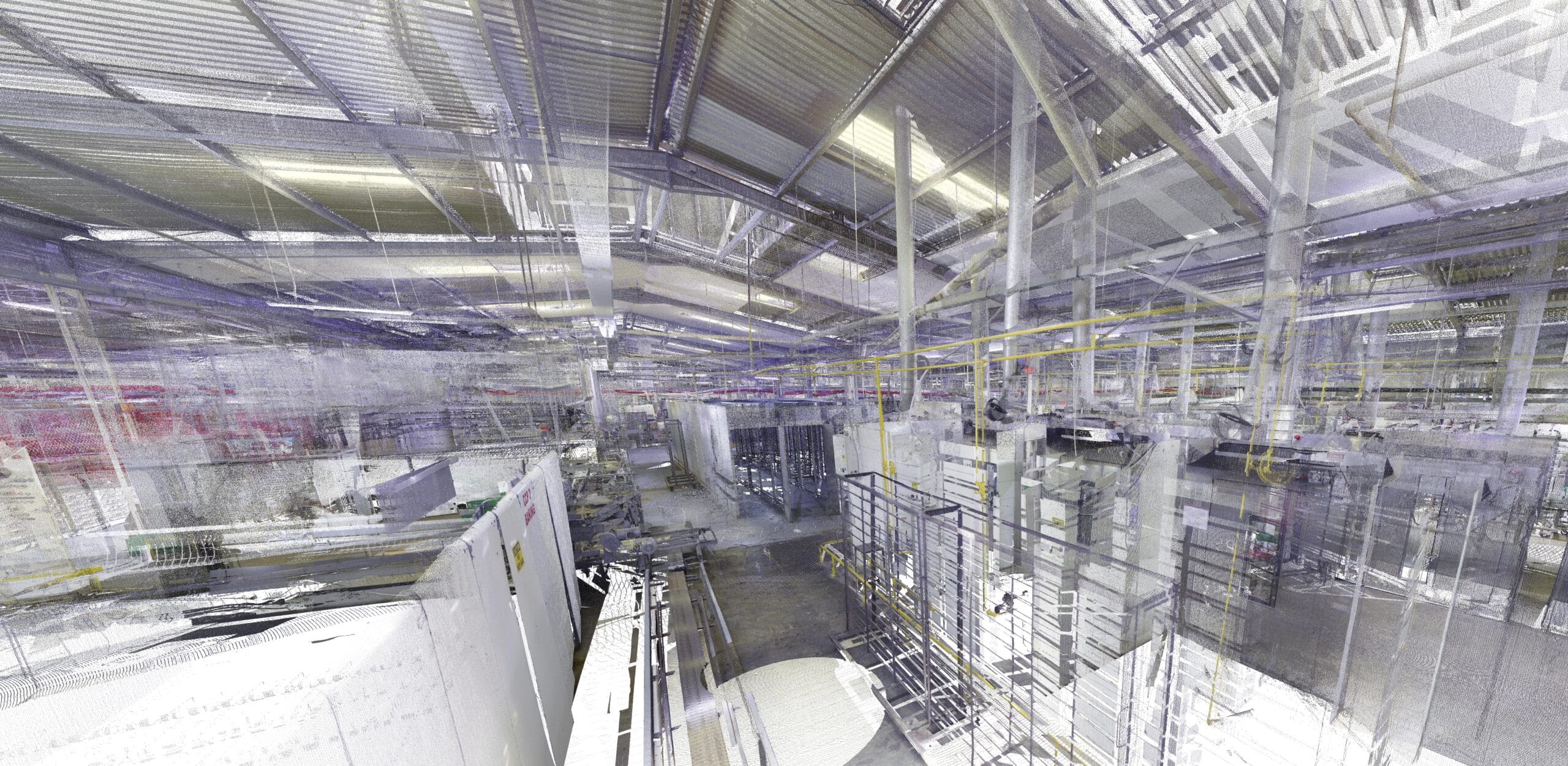

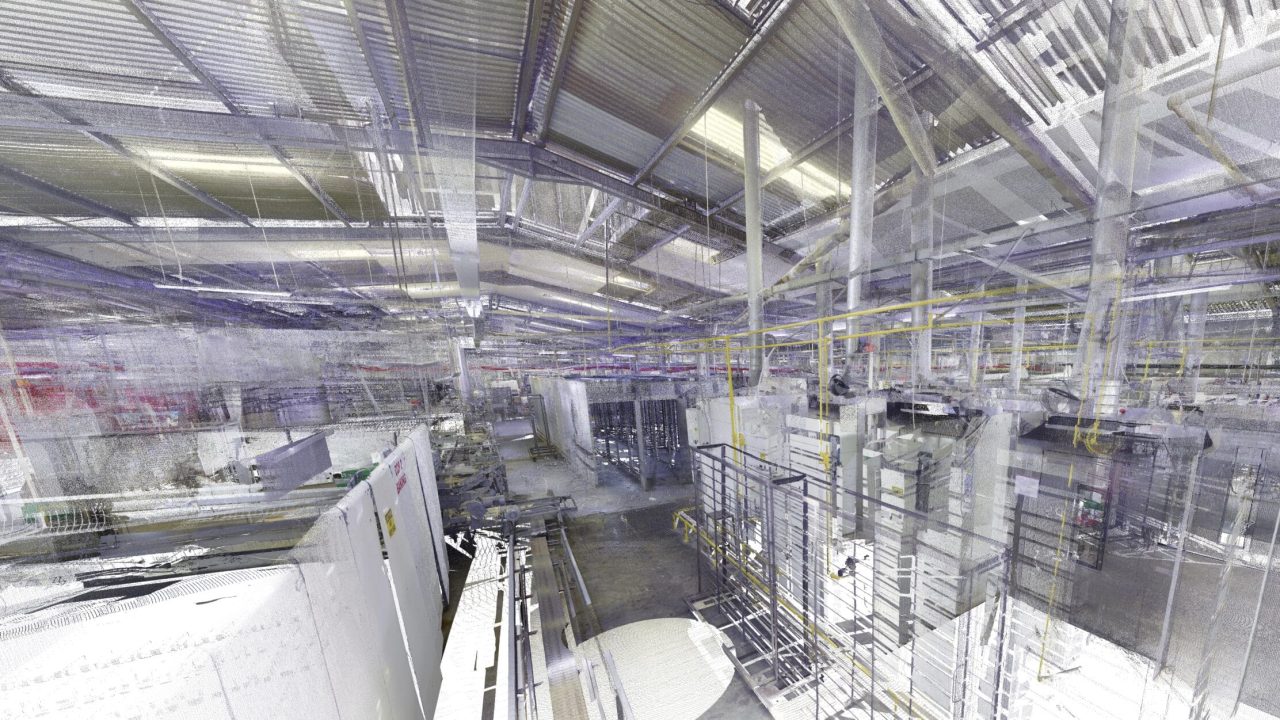

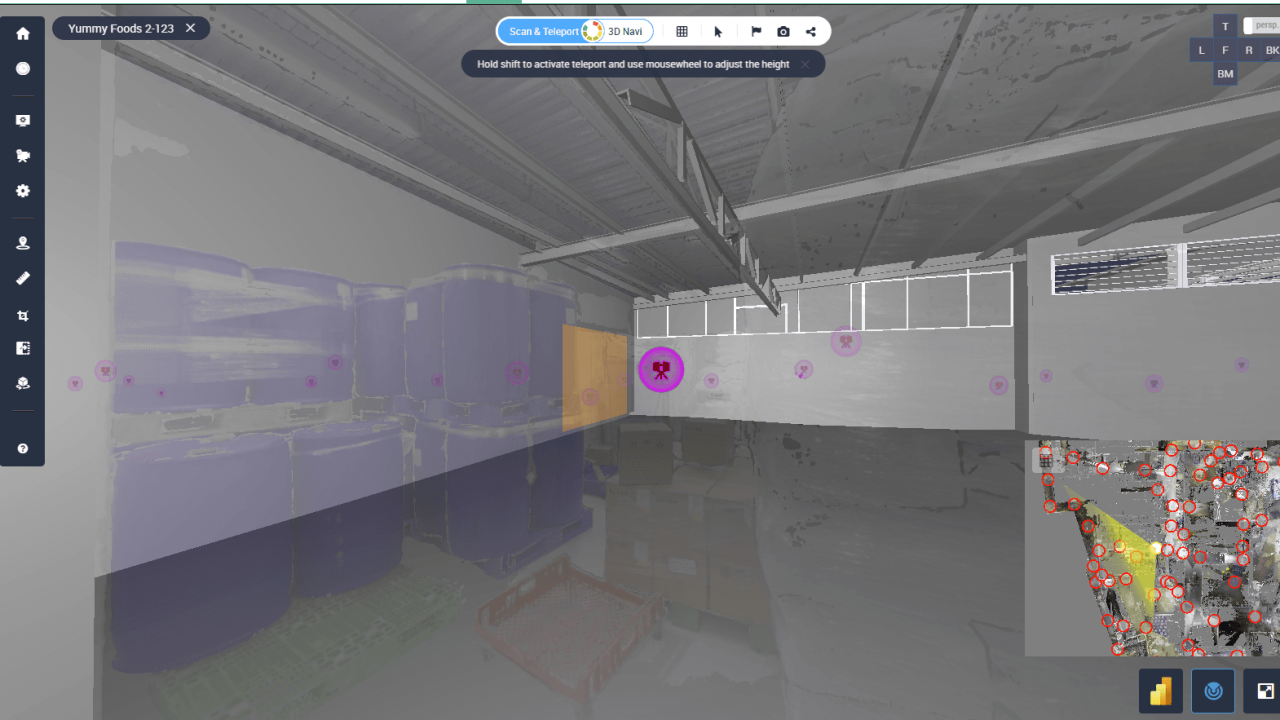

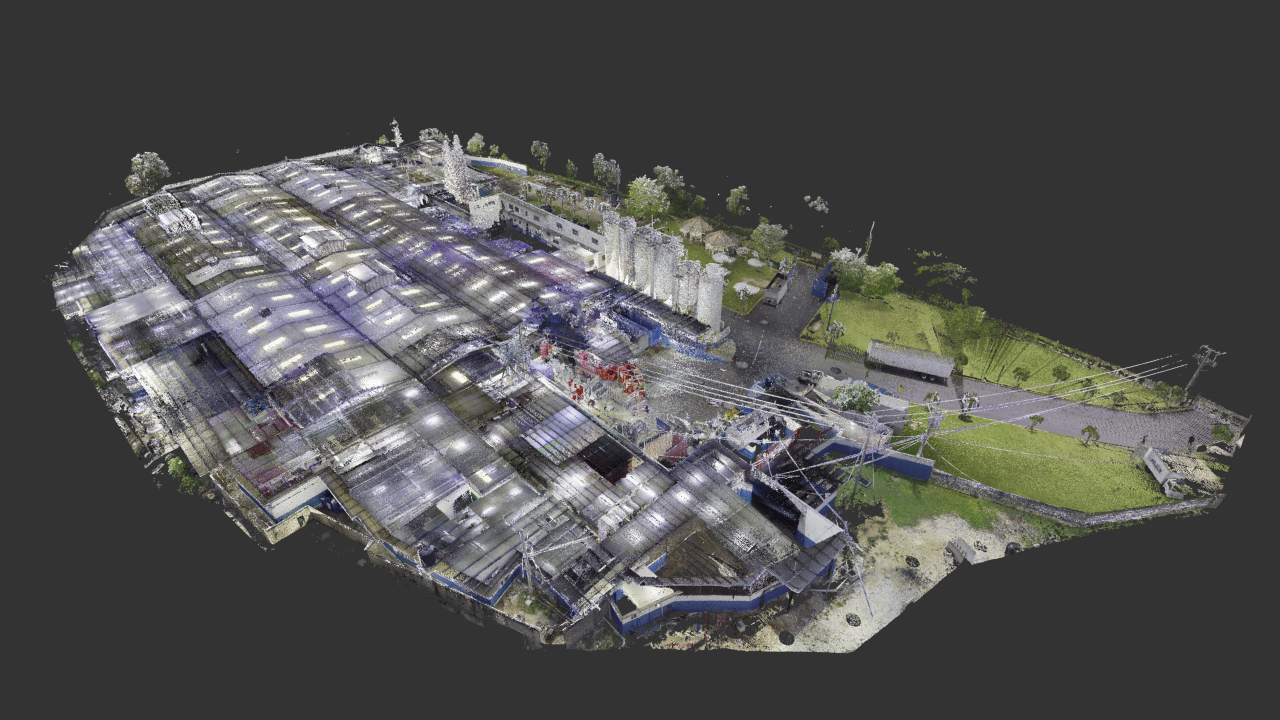

- CINTOO-hosted colorized point cloud with 360° imagery

- 2D AutoCAD drawings for equipment layouts and reflected ceiling plans (aligned with integrator needs)

- 3D Revit model (LOD 300) for structural/architectural zones

- Plan views and exterior elevations to replace legacy hand-drawn documents

OAR coordinated directly with plant management to gain access and complete the work swiftly and seamlessly.

The Results

220,000 sq ft scanned

85,000 sq ft modeled in 3D

Final deliverables delivered in under 4 weeks, including QA/QC

The ENSOL Group avoided months of site visits, saving thousands in travel costs

Enabled The ENSOL Group to begin 3D design work promptly and with high confidence

Significantly improved coordination across stakeholders with mixed 2D/3D formats hosted on CINTOO

Introduced topographic floor data for improved drainage planning

Established a living digital asset that can evolve as equipment and layout change over time

Technical Highlights

Scanned Area: ~220,000 sq ft

Modeled Area: ~85,000 sq ft

Equipment: Leica RTC360

Deliverables:

- Revit (LOD 300),

- AutoCAD 2D plans,

- PDFs (including RCPs),

- Hosted point cloud on CINTOO

Project Duration:

- Scanning: 3.5 days

- Final deliverables: ~4 weeks
