BIM Coordination Framework for a Greenfield Recycling Facility
The Project Need
A multi-party Greenfield project needed a defined BIM coordination framework, so participating organizations could work from common requirements, aligned model information, and a reliable digital process. Model alignment and coordinates were a primary submission challenge.
A defined BIM coordination framework for a multi-party project
OAR established a BIM coordination framework for a Greenfield recycling facility using a BEP, ACC, model federation, Bridge, clash review, and training.
Governance, project environment, model federation, data sharing, and training
BIM Execution Plan
OAR developed the project BIM Execution Plan to define BIM goals, responsibilities, information standards, workflows, and required deliverables that were distributed to all project partners as a requirement of the project.
Autodesk Construction Cloud Setup
OAR configured Autodesk Construction Cloud using Data Management and Model Coordination to support project information and model coordination workflows.
Model Federation and Initial Clash Review

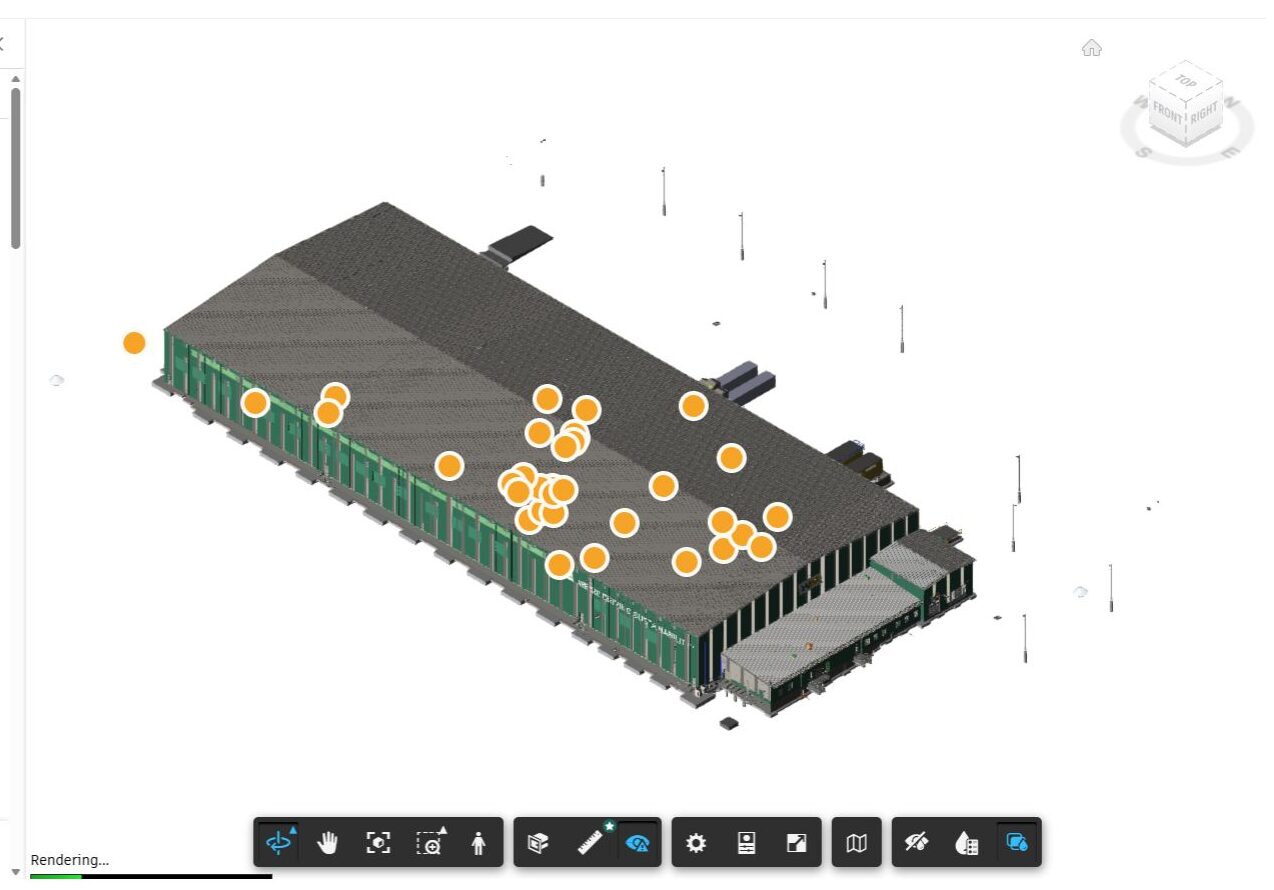

OAR federated project models in Navisworks and completed an initial clash-detection round, with coordination information managed through the project environment.
ACC Bridge and Data Sharing
ACC Bridge was used to transfer and share information between project environments managed by different organizations.
Export and Upload Guide
OAR prepared a guide defining how, what, and when contributing parties were expected to share project data.
Training
OAR provided BIM/ACC training to ownership staff (the client) as part of the implementation.
How the Deliverable Was Used
The framework established shared BIM requirements, a common project environment, and a defined model-sharing process for the participating organizations. It also provided a structured way to address alignment and coordinate issues during model submission and federation.
BIM Execution Plan
ACC Data Management configuration
ACC Model Coordination configuration
Navisworks model federation
Initial clash-detection review
ACC Bridge connection
Export & Upload Guide
BIM / ACC training
What This Workflow Demonstrates
This project demonstrates how BIM implementation can begin with governance and information structure: a BEP, defined data-sharing rules, aligned model requirements, a configured CDE, and an initial coordination process that multiple organizations can follow.
