BIM Coordination & Virtual Construction

OAR’s BIM Coordination & Virtual Construction team turns laser scan data and design models into conflict-free, construction-ready outputs. We run clash detection across all trades and deliver coordinated MEP systems, whether on a single project or embedded across your entire program.

Based in New Hampshire, OAR provides BIM Coordination & Virtual Construction services nationwide for industrial facilities, manufacturing plants, MRFs, power generation facilities, and commercial construction. We work remotely and on-site as your project requires.

WHY IT MATTERS

Catch conflicts in the model. Not in the field.

Fewer Clashes, Fewer Change Orders

Every unresolved conflict in the model is a potential chargeback, work stoppage, or budget hit in the field. We coordinate across all disciplines and resolve issues before work begins, so your team builds with confidence.

We run clash detection across mechanical, electrical, plumbing, structural, and fire protection. When every trade fits in the model, your crew installs once. No rework, no emergency RFIs, no schedule disruptions from conflicts that should have been caught on screen.

Less Rework, Less Waste

Rework is one of the most controllable costs on a project if you catch the problem early enough. The coordination process exists to surface those problems while they are still on a screen and not at installation phase onsite.

We have watched fabrication packages get sent to the shop based on design-intent models that never accounted for what was already in the ceiling. The install crew shows up, nothing routes the way it was drawn, and the GC starts tracking change orders. That sequence is preventable. It starts with a model that reflects verified conditions, not assumptions.

One Model, One Truth, Every Stakeholder Aligned

We build and maintain a single source of truth for the project. Every stakeholder works from the same coordinated model.bResponsibilities are clear, issues get resolved faster, and fewer things fall through the cracks between disciplines.

On most projects, the coordination model lives in one place and the conversation about it lives in five others. Email threads, markups on PDFs, notes from a call nobody documented. We have learned that the model only works as a single source of truth when every trade can access it, annotate it, and reference it without needing specialized software or waiting on someone to export a file.

Downstream Savings That Outlast the Project

When coordination is done right, the value extends well beyond clash detection. The same model that resolved conflicts during preconstruction supports: Fabrication Progress monitoring Closeout documentation Better data at the start means fewer gaps at every phase after it.

The projects where we see the strongest ROI are not necessarily the most complex ones. They are the ones where the team committed to keeping the model current through construction instead of treating coordination as a preconstruction checkbox. When that happens, the owner gets verified as-builts at closeout without a separate capture effort, and the model keeps working into operations and future renovations.

Understanding the work

What is BIM coordination?

BIM coordination integrates architectural, structural, and MEP models to identify and resolve conflicts before construction begins. Using Revit and Navisworks, coordinators detect clashes, optimize installation sequences, and produce construction-ready documentation.

What does a BIM coordinator do?

A BIM coordinator builds 3D models from design documents or scan data, runs clash detection across trades, facilitates resolution meetings, and delivers coordinated drawings for fabrication and installation. Every system fits before a single component is ordered.

BIM coordination vs. VDC: what's the difference?

BIM coordination covers model integration and clash detection. VDC is broader: it adds 4D scheduling, construction sequencing, and digital project management. At OAR, our coordination services include both.

Is this right for your project?

You need BIM coordination when...

“Multiple trades need to fit in the same space.”

HVAC, structural, electrical, plumbing, fire protection. When they all need to fit in the same ceiling, wall, or mechanical room with tight clearances and uncertain conditions, 3D coordination will probably catch a lot of clashes ahead of installation.

Talk to us about your project →

“We're building inside an operating facility.”

Retrofit and renovation work means new systems must integrate with existing conditions. Coordination against scan data prevents field surprises and keeps operations running.

Send Us a Message →

“Our contract requires BIM coordination or a BEP.”

More owners and GCs are mandating 3D coordination. You need a partner who can run the process, manage the BIM Execution Plan, and deliver the documentation. Not just produce a model.

Send Us a Message →

“We need to compress construction into a shutdown window.”

When every hour of downtime costs money, installation sequences, demolition plans, and coordination must be locked down before you start. We build the model and the sequence so your crew can execute with confidence.

Talk to us about shutdown coordination →

“Our team doesn't have internal VDC capacity.”

You need the coordination capability but don’t have the staff, software, or bandwidth to run it yourself. OAR can plug in as your coordination team or stand up a full VDC operation across your program.

See our engagement models →

“We have a complex or phased shutdown coming up.”

Multi-phase shutdowns across industrial facilities require coordination that adapts to changing conditions, scope additions, and schedule shifts. Our managed VDC model was built for exactly this environment.

Tell us about your program →

How we engage

Two models. Same standard.

Both paths deliver conflict-free, construction-ready outcomes.

Project-Based BIM Coordination

Scoped. Finite. Deliverable-focused.

Project-Based BIM Coordination

Revit model development (LOD 200-350) from scan data and/or design documents
AI-assisted multi-discipline clash detection and resolution across all trades
Coordinated installation drawings and sequences
Constructability reviews against existing conditions
Model hosting and stakeholder access
2D coordination drawings, sections, and details

Best for: Trade contractors managing a specific install. GCs coordinating a retrofit. Engineers who need coordination support on a complex project.

Send Us a Message →

Managed VDC Operations

Embedded. Ongoing. Your VDC department without building one.

Managed VDC Operations

Full coordination workflow from first scan to closeout documentation
Ongoing 3D model development and maintenance across projects
AI-powered coordination across all trades, managed by OAR
CDE setup, hosting, and AI governance
4D sequencing, demolition planning, and installation optimization
Construction verification against as-built models as work progresses
As-built documentation and digital twin development for owner use
VDC contract requirements for subcontractors and AEC partners

Best for: Owners managing complex retrofits or multi-phase capital programs. GCs running programs with repeated project types. Industrial operators coordinating shutdowns across a portfolio.

Send Us a Message →

Work we've done

BIM coordination in the field.

MRF · Recycling

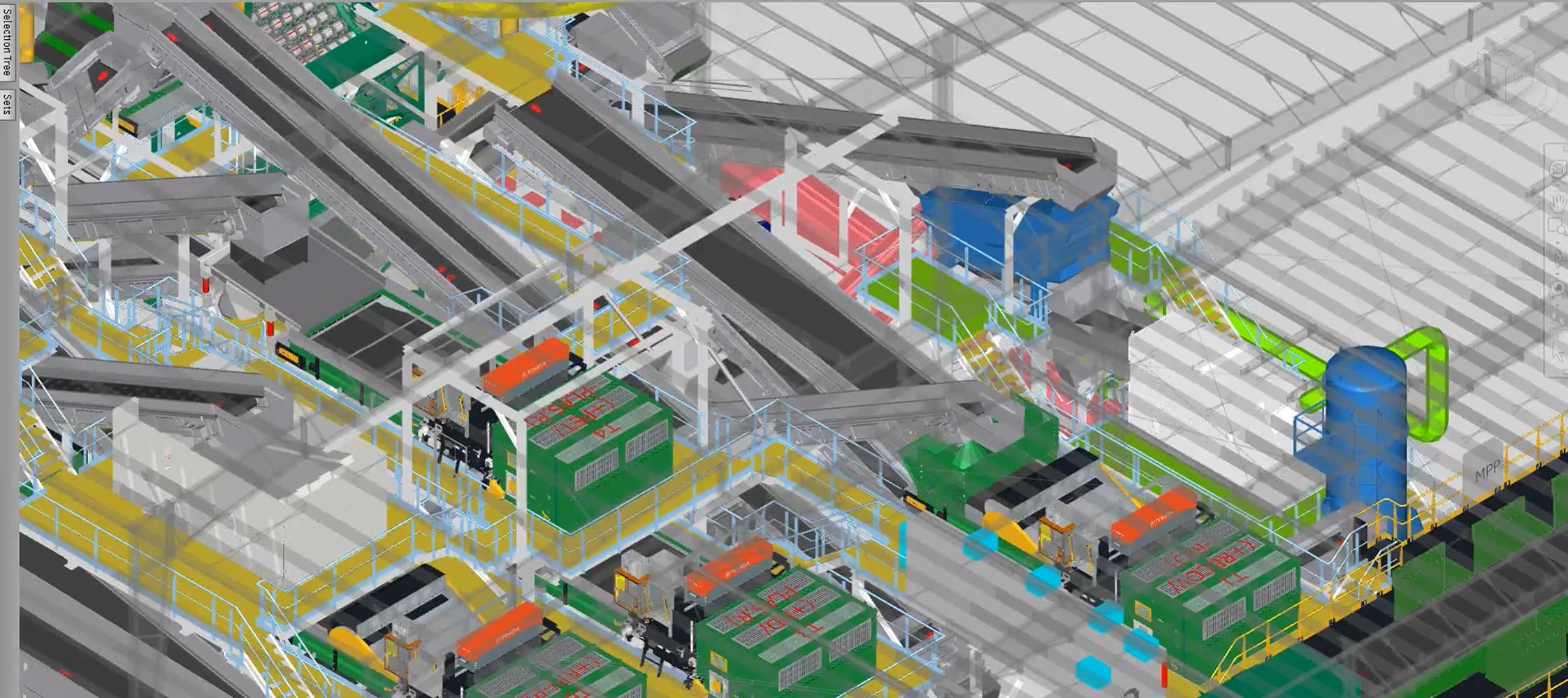

Michigan MRF: Lifecycle BIM Coordination from Concept to Commissioning

Detroit, Michigan – Scan to BIM · BIM/VDC · Equipment Coordination · Digital Twin

LOD 350

MEP model delivered

Trades coordinated

Field conflicts at install

A state-of-the-art materials recovery facility in Detroit required full lifecycle BIM coordination: from initial equipment layout through installation and commissioning. The project involved multiple vendors, fabricators, and field crews working in parallel across a complex facility with new sorting equipment, conveyor systems, structural platforms, and utility infrastructure. OAR served as the BIM coordination lead throughout, connecting all project stakeholders through a Common Data Environment and managing the digital thread from design through closeout.

Related projects

Multi-Trade BIM Coordination, Field Support, Scan to BIM

Life Sciences Campus Renovation: 350 Clashes Resolved Before Mobilization — $450K in Avoided Rework

LOD 300, 3D Laser Scanning, Scan to BIM

Midwest MRF Documentation: LOD 300 As-Built Model of a 100,000 SF Active Recycling Facility

Equipment Coordination, Digital Twin, Scan to BIM, BIM/VDC

Michigan MRF: Lifecycle BIM Coordination from Concept to Commissioning

What teams say

From the field

“OAR’s team has been great to work with throughout multiple large-scale scan to BIM projects. High attention to detail, accurate scan data, proper BIM implementation and consistent communication and support from OAR has helped to improve our project quality and efficiency from start to finish.”

Alex Quarterly, Senior Integrations Designer · Waste Management Engineering Department

“Professional, timely and highly accurate scanning and modeling by OAR has saved me $$$. Having a single 3D source of truth for engineers, OEMs and tradesmen made my last project a breeze.”

Mike Oraschewsky, Owner · TBJ Gourmet Food Manufacturing Plant Integration Project

“OAR attacks their projects methodically and professionally asking detailed questions regarding our final needs to fabricate. End result was a spectacular fit of formed powder coated aluminum angle under our cable guardrail system. Can’t wait to work with OAR on the next project!”

Mark Stock, President · Multi-Weld Services INC.

“Our collaboration with OAR on the Mint gaming job has been exceptional. The team’s dedication and support have significantly improved the project’s progress, making my role as a Project Manager more enjoyable. I can’t praise the OAR crew enough for their contributions.”

John Shea, Senior Project Manager · American Steel Fabricators

Common questions

Frequently asked questions

What is clash detection?

Clash detection identifies conflicts between building systems in a 3D model before construction. Hard clashes are physical conflicts (a duct intersecting a beam). Soft clashes are clearance violations (equipment too close to a wall for maintenance access). Navisworks and BIM 360 automatically detect these conflicts by comparing coordinated models from all trades.

How long does BIM coordination take?

Timeline depends on project size and complexity. A typical industrial retrofit with MEP coordination takes 3 to 4 weeks for initial model development, followed by 2 to 3 coordination rounds of one week each, then final coordinated deliverables. Large multi-phase programs may run coordination continuously throughout construction.

Do you work with Revit and Navisworks?

Yes. OAR uses Autodesk Revit for 3D modeling, Navisworks Manage for clash detection, and Autodesk Construction Cloud for model hosting and collaboration. We also integrate with Cintoo for scan data, Procore, and Bluebeam. We use AI across the workflow to move faster and catch more.

Can you coordinate MEP systems only?

Yes. Many of our projects focus exclusively on MEP coordination: mechanical, electrical, plumbing, and fire protection. We coordinate against architectural and structural models provided by others, or we can develop those base models from scan data if needed.

What's included in Managed VDC?

Managed VDC is an embedded service where OAR acts as your VDC department. We develop and maintain models across all your active projects, run ongoing coordination, manage your Common Data Environment, produce shop drawings and installation sequences, and handle as-built documentation. You get VDC capability without hiring a VDC team.

How much does BIM coordination cost?

Project-based coordination typically ranges from $15,000 to $50,000+ depending on scope, number of trades, LOD requirements, and digital twin closeout documentation needs. Managed VDC is structured as a monthly retainer based on your project volume. Send us a message with your project details and we will put together a detailed proposal.

Who buys BIM coordination?

General Contractors: we make sure your project is coordinated, documented, and defensible. Clash detection, BEP management, and construction-ready deliverables that protect your schedule and reduce change order exposure across all trades.

MEP Subcontractors: we plug into your coordination workflow and handle the model work so your team can focus on installation. Conflict-free fabrication packages, shop drawing support, and clash detection that eliminates field surprises before they happen.

Owners & Project Teams: we make sure the right coordination methodologies are applied on your project and that the data you receive at closeout is structured, complete, and usable. You get a partner who is accountable for the outcome, not just the deliverable.
