3D Laser Scanning · Existing Conditions · Industrial Retrofit

Existing-Conditions Modeling for an Industrial Equipment Retrofit

300

LOD model requirement

Included model components

Digital deliverables

PROJECT USE

Existing-conditions scan and modeling to replace an industrial oven

MODEL REQUIREMENT

LOD 300

MODELED CONTEXT

Visible building and MEP elements

DELIVERABLE

3D navigable model and point cloud

Overview

The Project Need

The project team needed an accurate representation of the room around the existing oven that needed to be replaced to understand spatial limitations, and plan installation and operation of the new oven that they planned to install.

The Challenge

OAR's Scope

OAR modeled the visible building and MEP conditions to LOD 300 so the project team could understand the available space for a new equipment retrofit.

Our Approach

Existing-Conditions Scan and Modeling

Existing-Conditions Scan

AREA · COMPONENTS · STRUCTURE

OAR 3D laser scanned the area, components, and structure immediately surrounding the operational industrial oven.

Existing-Conditions Modeling

VISIBLE BUILDING · MEP CONTEXT

OAR modeled the visible building and MEP context surrounding the existing oven.

Model Content

VISIBLE CONDITIONS

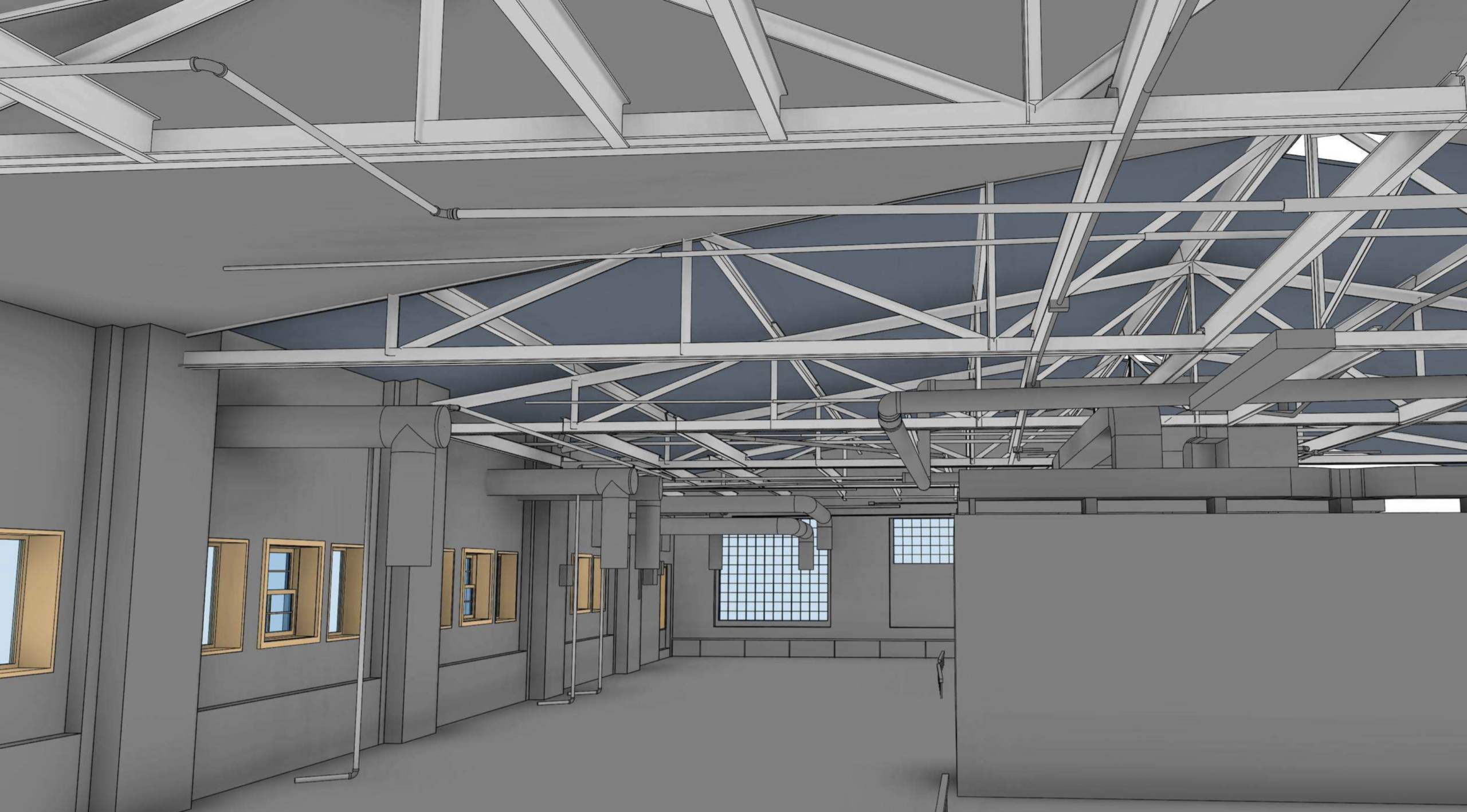

The model included visible walls, windows, equipment, ducts, pipes, and lighting fixtures.

What We Delivered

Model Requirement and Retrofit Context

Model Requirement
The project was modeled to LOD 300.

Retrofit Context
The existing oven was not modeled. The surrounding conditions were modeled so the client could visualize and confirm form, fit, and function of design.

How the Deliverable Was Used
The client used the model to identify limitations of installation, access, and successful operations before the new oven arrived onsite.

Project Outcome
The project delivered an accurate and complete 3D navigable model and point cloud representative of the building and MEP conditions that the to-be-installed oven would need to integrate into which provided our client the opportunity to do a remote and low-cost consideration of the feasibility of the oven replacement project before any equipment was ordered.

What This Workflow Demonstrates
This project demonstrates how existing-conditions 3D laser scanning and 3D modeling can give an equipment retrofit team a comprehensive digital representation of spatial components for better design and construction planning.

What Was Included

Walls

Windows

Visible equipment

Ductwork

Piping

Lighting fixtures

LOD 300 model

Project Visuals

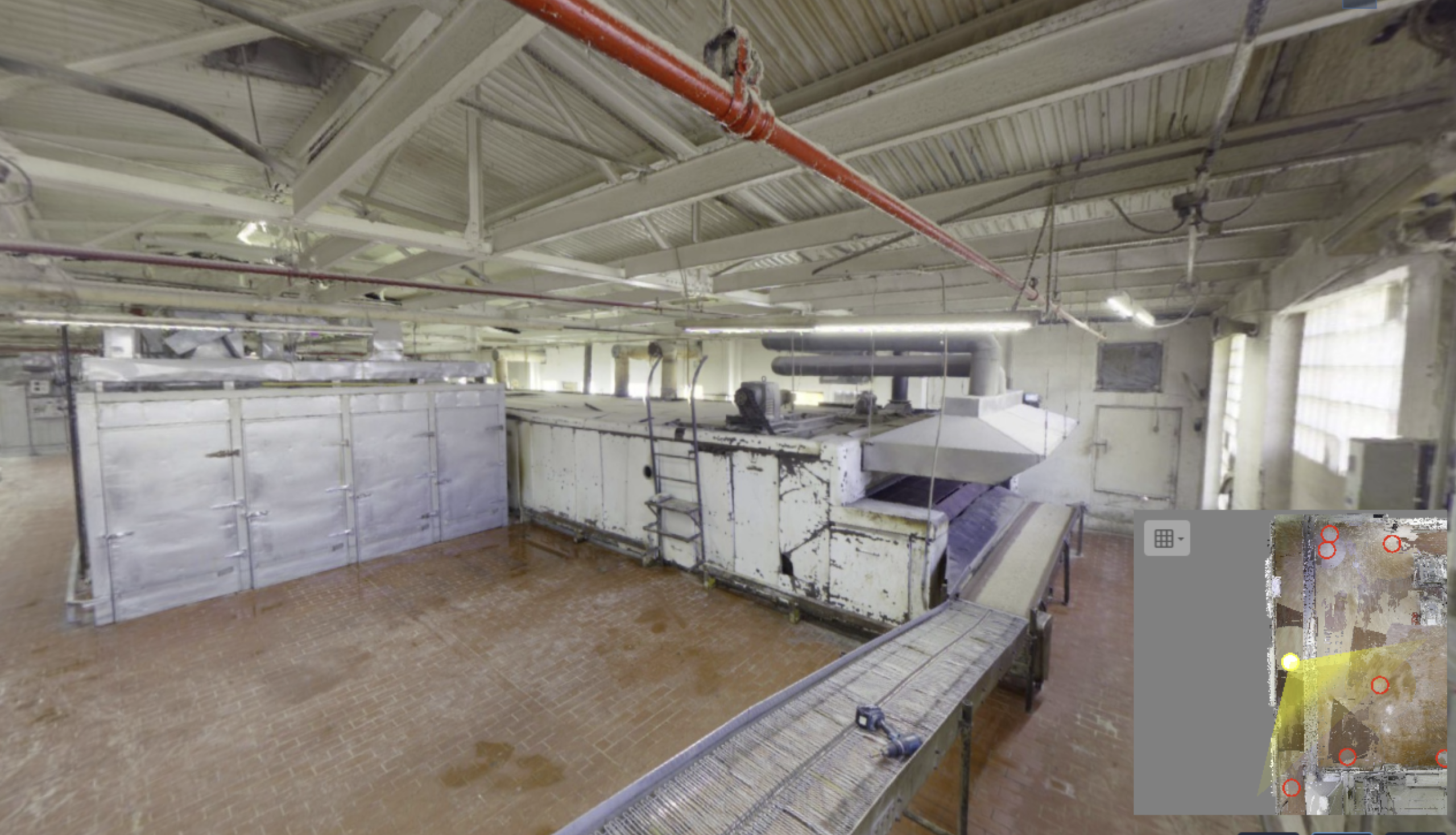

Industrial space with machinery and conveyors.
