3D Laser Scanning · Floor Elevation Visualization · Healthcare Construction

Floor Elevation Visualization for Prefabricated Bathroom Pod Installation

40 +

Bathroom pod locations scanned

Connected steps from field capture to report

week

Typical scan-to-report cadence or less

Industry

Healthcare Construction

Location

Indianapolis, Indiana

Scope

3D Laser Scanning + Floor Elevation Visualization + Batched Reporting

CLIENT

Prefabricated Bathroom Pod Fabricator

Overview

The Project Need

After installation onsite, the client needed a record of floor slopes within approximately 270 prefabricated bathroom pods. The measured information allowed the client team to review drainage toward the floor drains against its own project requirements.

The Challenge

Confirm floor slope across approximately 270 installed bathroom pods.

The hospital was still under construction, and the review needed to cover a large number of pod locations efficiently. The deliverable had to show actual elevation changes clearly while keeping every result tied to its location on the project floor plans.

Our Approach

Capture each pod. Visualize the elevation. Report it in context.

Field Capture

Approximately 270 pod locations

OAR performed 3D Laser Scanning of floor conditions within approximately 270 bathroom pod locations during active hospital construction.

Floor Elevation Visualization

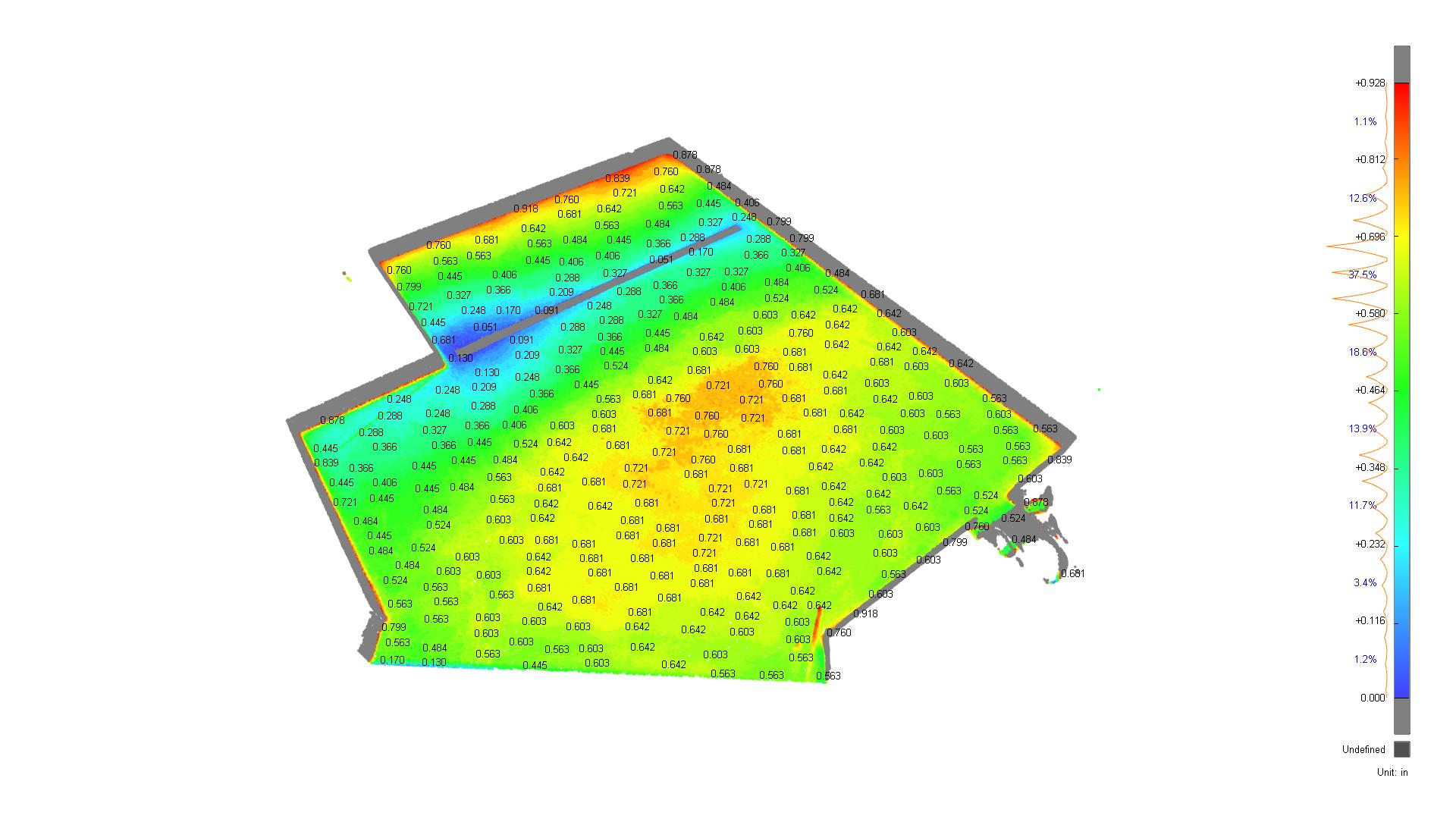

Cyclone 3DR elevation color maps

OAR processed the captured point-cloud data in Cyclone 3DR and created color maps based on point elevation. The visualization showed how floor elevation changed across each reviewed pod location.

Report Preparation

Floor-plan-based batched reports

OAR placed screenshots of the color-mapped results into reports that identified each pod location on the floor plans. Reports were produced in batches, with a typical scan-to-report cadence of approximately half a week or less.

What We Delivered

A repeatable visual record of floor conditions at scale.

OAR provided measured floor information that the manufacturer could use to review drainage conditions with the contractor and owner representatives. The workflow gave the client a consistent visual record across a large number of installation locations, while the client retained authority over tolerances and pass or fail decisions.

What this workflow demonstrates

3D Laser Scanning can support fast, repeatable elevation visualization when teams need to assess critical floor conditions at scale.

Related OAR services

What the client received

Field scanning at approximately 270 bathroom pod locations

Point-cloud processing in Cyclone 3DR

Elevation-based color maps showing measured floor conditions

Report screenshots tied to pod locations on floor plans

Batched reporting during active construction

Project Visuals

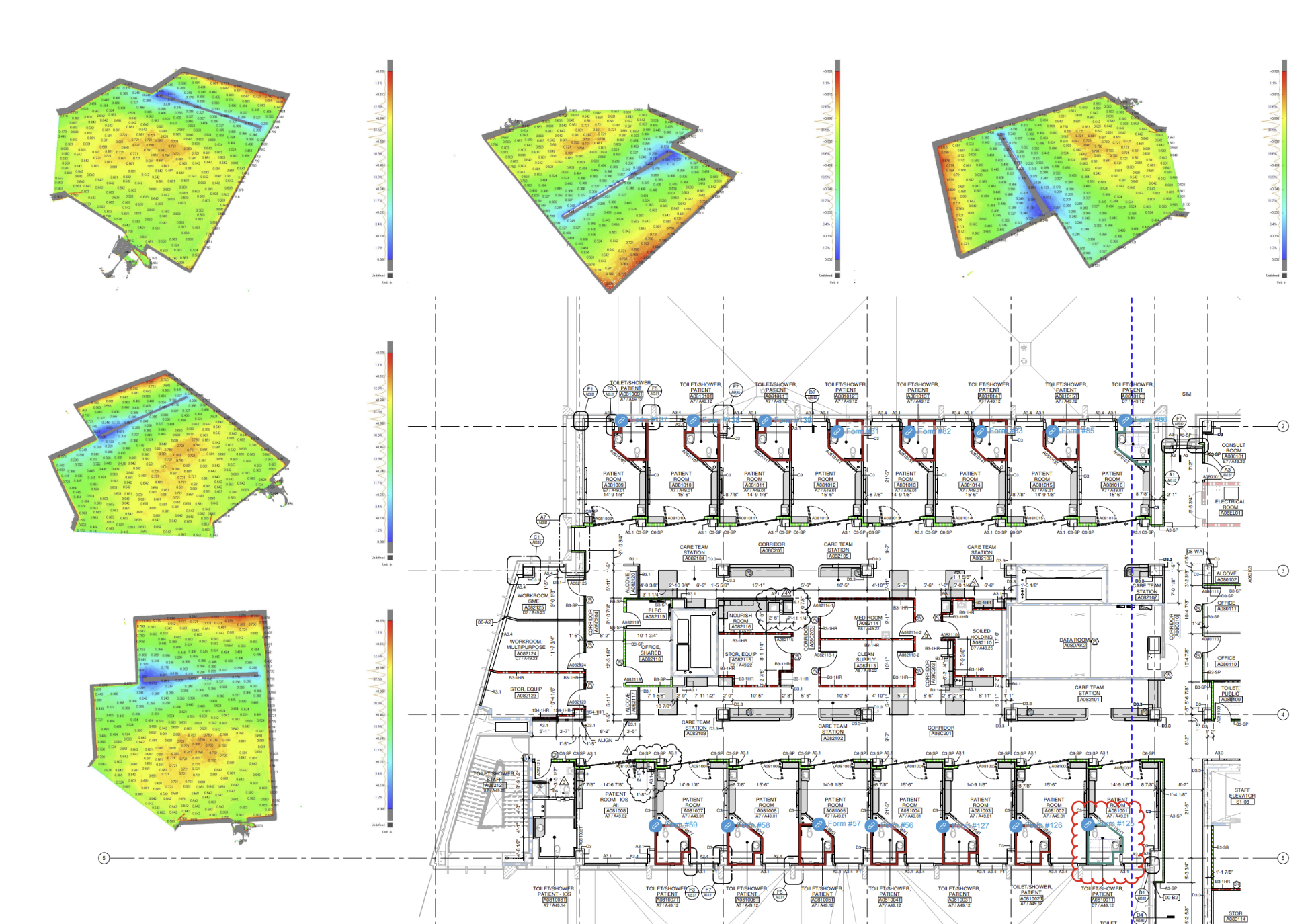

Topographic maps and building floor plan

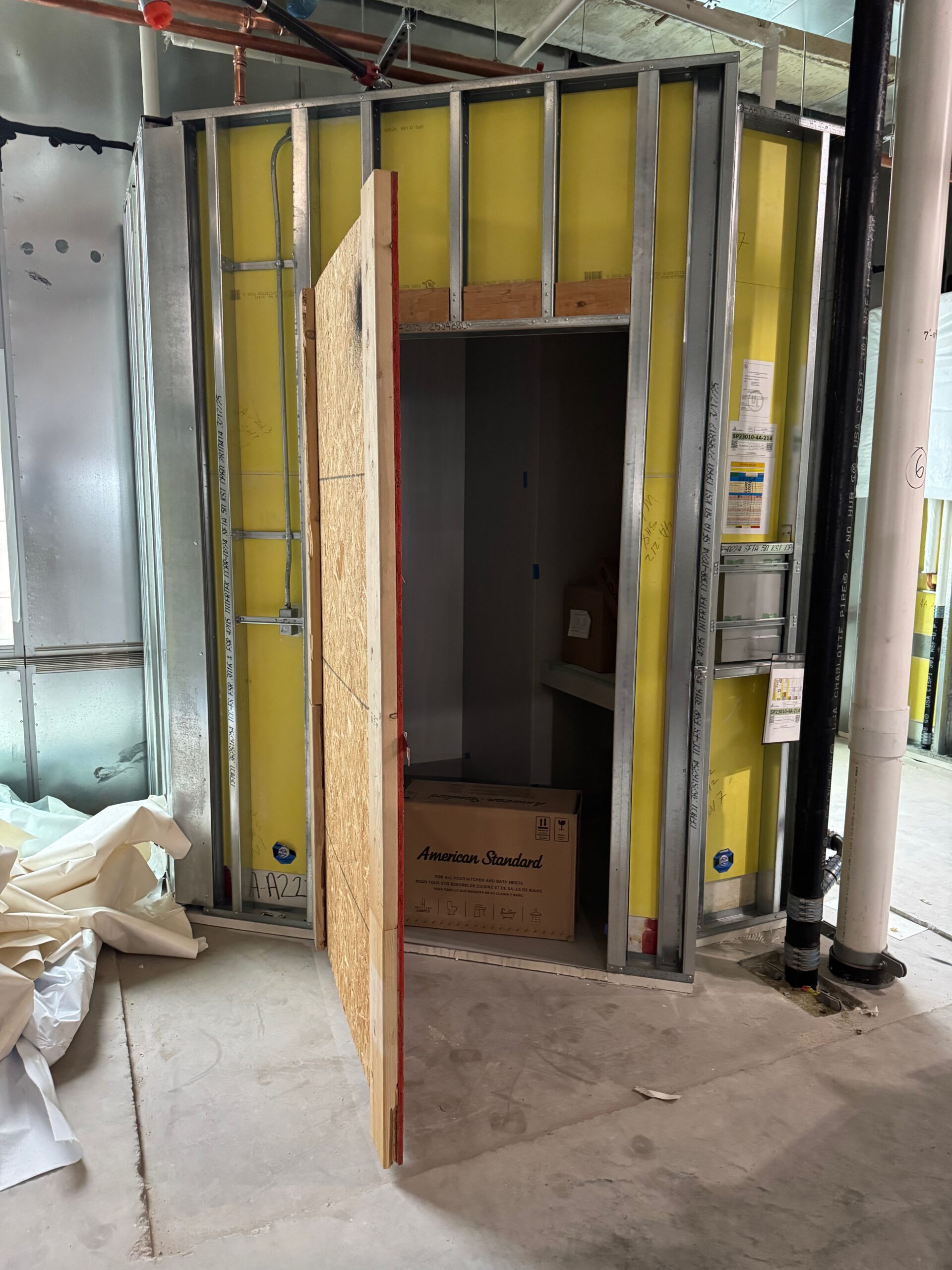

Open construction elevator shaft with door

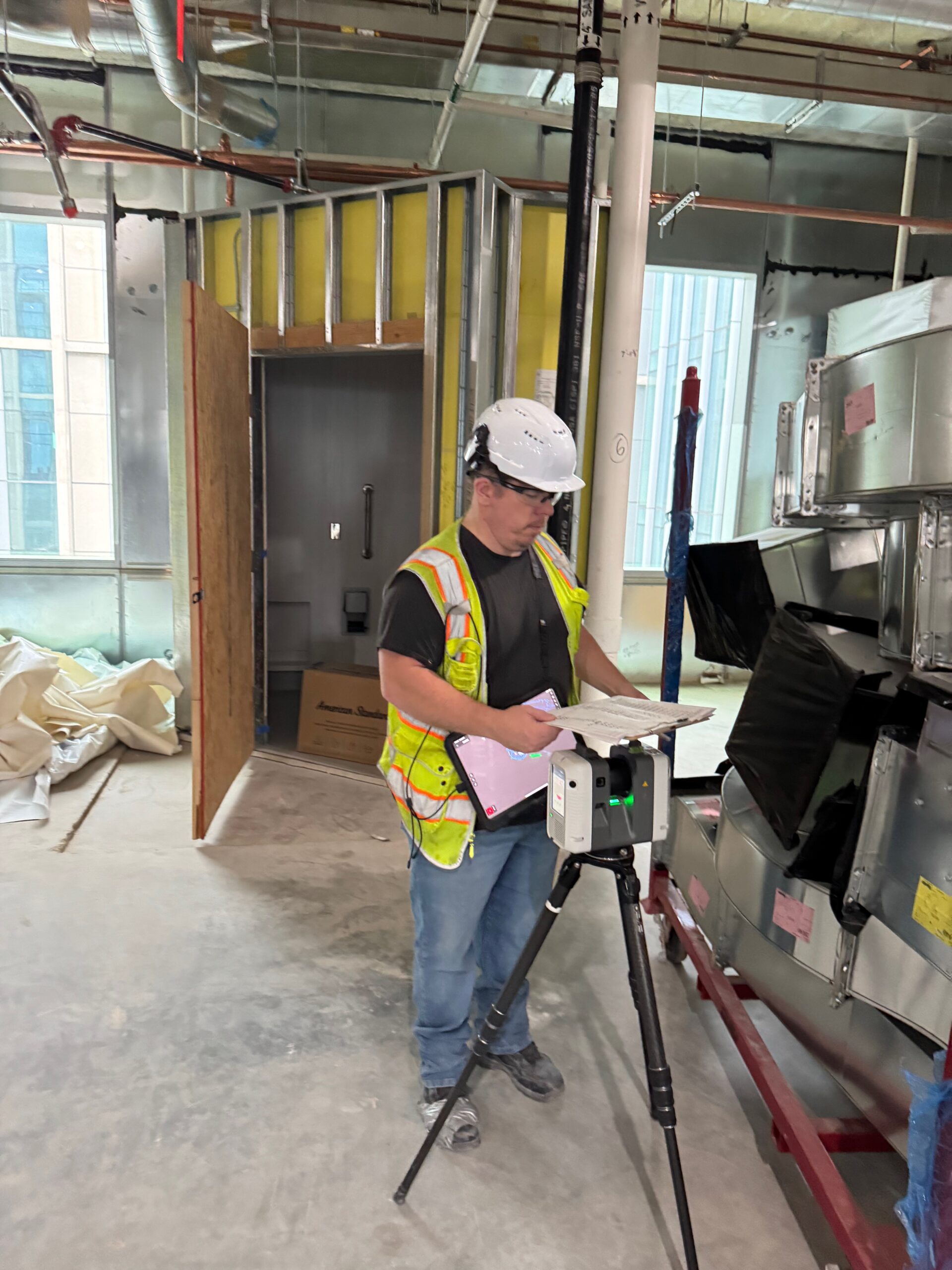

Worker surveying construction site with equipment
